Spherical Roller Thrust Bearing

Product details

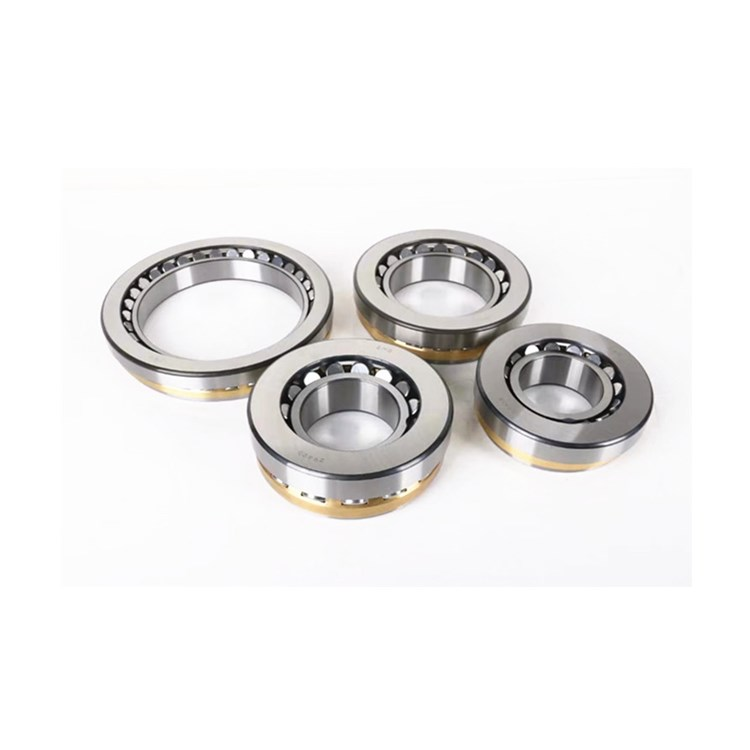

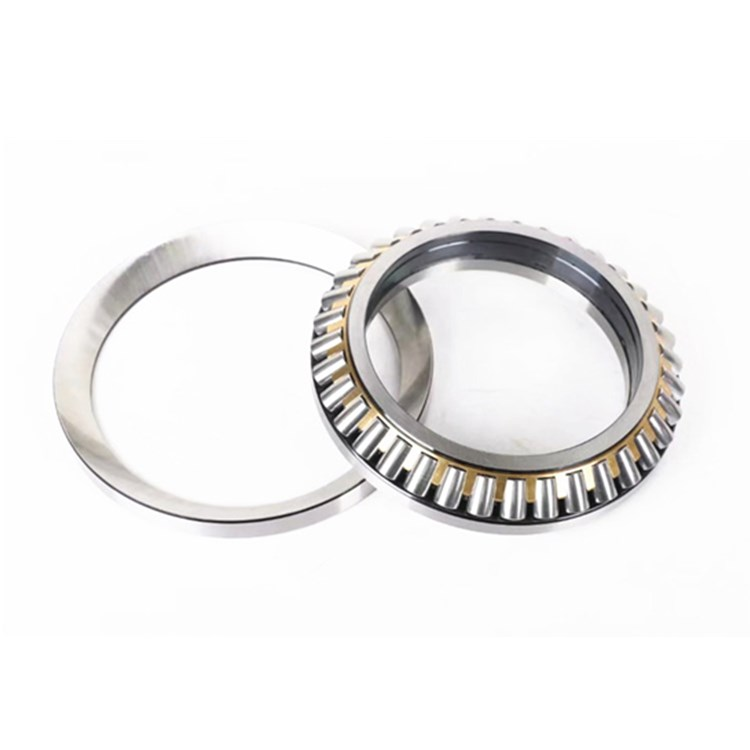

Spherical Roller Thrust Bearing

Spherical Roller Thrust Bearing 29320 29420 (Inner diameter 100MM) For Machinery
High quality GCr15 bearing steel is selected and refined by advanced processing technology.
spherical roller thrust bearings are the only roller thrust bearings, that can accommodate Radial loads in addition to axial loads. This ability to accommodate combined loads enables economical, space saving designs that can also provide a high degree of stiffness under heavy load conditions.

Product Paraments:

Bearing	Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds r/min	Weight (Kg)
No.	d	D	T	rs min	Ca	Coa	Oil	(Approx. )
29412	60	130	42	1.5	283	805	2400	2.78
29413	65	140	45	2	330	945	2200	3.44
29414	70	150	48	2	365	1040	2200	4.19
29415	75	160	51	2	415	1190	2100	5.07
29416	80	170	54	2.1	460	1380	1900	6.09
29417	85	180	58	2.1	490	1480	1800	7.2
29418	90	190	60	2.1	545	1680	1700	8.38
29420	100	210	67	3	685	2130	1500	11.5
29422	110	230	73	3	845	2620	1400	15
29424	120	250	78	4	975	3050	1300	18.6
29426	130	270	85	4	1080	3555	1200	23.7
29428	140	280	85	4	1110	3750	1200	25.2
29430	150	300	90	4	1280	4250	1100	30.5
29432	160	320	95	5	1500	5150	1100	37
29434	170	340	103	5	1660	5750	940	45
29436	180	360	109	5	1800	6200	890	52.9
29438	190	380	115	5	2000	6800	840	62
29440	200	400	122	5	2200	7650	790	73.3
We reserve the right to change specifications and other information included in this catalogue without notice.
